Replacement Parts for Widespread Lavatory Faucet with Cross Handle

Coventry Brass Works Limited Widespread Lavatory Faucet with Cross Handle

18-100-10

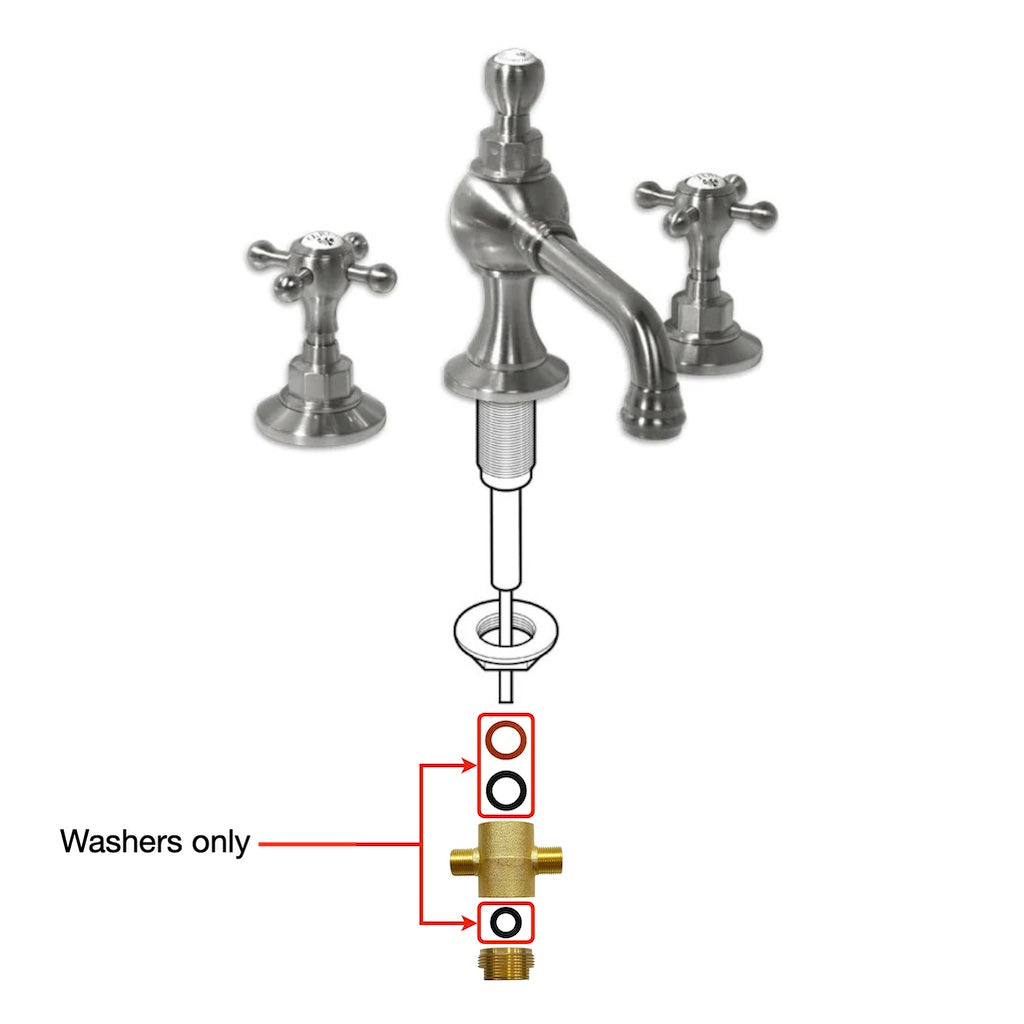

Parts Diagram

Click on a part with a red outline for details.


Handle Parts

Click on a part with a red outline for details.


Instructions

  1. Use the Parts Diagram above to identify the replacement part that you need.
  2. In the Replacement Parts section below, click the link to the part.
  3. If the part that you need is not listed as a clickable link, then email us at coventrybrassworks@gmail.com with the name and number of the part that you need.

Replacement Parts

Refer to the parts diagrams above to identify the replacement parts that you need.

Cartridges

Cold Cartridge

Hot Cartridge

Hot and Cold Cartridge Bundle

Valves

Cold Valve

Hot Valve

Buttons

Ceramic Hot Button with Ring

Ceramic Cold Button with Ring

Handles

Cross Handle with Hot Button 88.01.202

Cross Handle with Cold Button 88.01.203

Other Parts

Pop-up Rod and Knob 88.11.201

Spout Tip and Aerator 88.07.201

Hexagon Escutcheon 88.03.200

Base Escutcheon 88.03.201

Pair of Cross Handle Screws 88.01.205

Documentation

Installation Instructions


Instructional Videos

Replacing Button on Cross Handle

To replace the button or cap on top of the handle, or to replace a cartridge, you will need to remove the existing metal cap on top of the faucet handle.

Removing the existing metal cap on top of the faucet handle is not easy. The metal cap has not been unscrewed for many years, so it is fixed in place.

Firmly press down on the metal cap, and then rotate it counterclockwise with a strong grip. (Rubber gloves may help increase your grip.) Keep trying until you unscrew the existing metal cap.

After you unscrew the existing metal cap, screw on the new button with metal ring.


How to Install Cross Handle

To replace the button on top of the handle or to replace a cartridge, you will need to remove the existing button with metal ring on top of the faucet handle.

Removing the existing button on top of the faucet handle and replacing it with a new button with metal ring is not obvious. You will need to use rubber gloves with a good grip to unscrew and remove the existing metal ring atop the handle. Then screw on the new button with metal ring. The video below demonstrates how to change the button.


Replacing Spout Tip and Aerator

To remove the existing metal spout tip, wear a rubber glove for a strong grip, then turn the tip of the spout counterclockwise, as shown in this video.


Replacing Cartridge on Faucet with Cross Handle


Using a Socket Wrench to Remove a Cartridge


Finding Parts

If the parts that you need are shown in the parts diagram, but not individually listed above:

  1. Email us by clicking coventrybrassworks@gmail.com.
  2. Include the part names and numbers from the parts diagram.

We can help you find the parts that you need. Please click to call or email us.

Email us a description of your issue, the model name and number of the faucet and part, age of the faucet, and photos of the faucet and part. We will research which parts you need and reply.
